Description

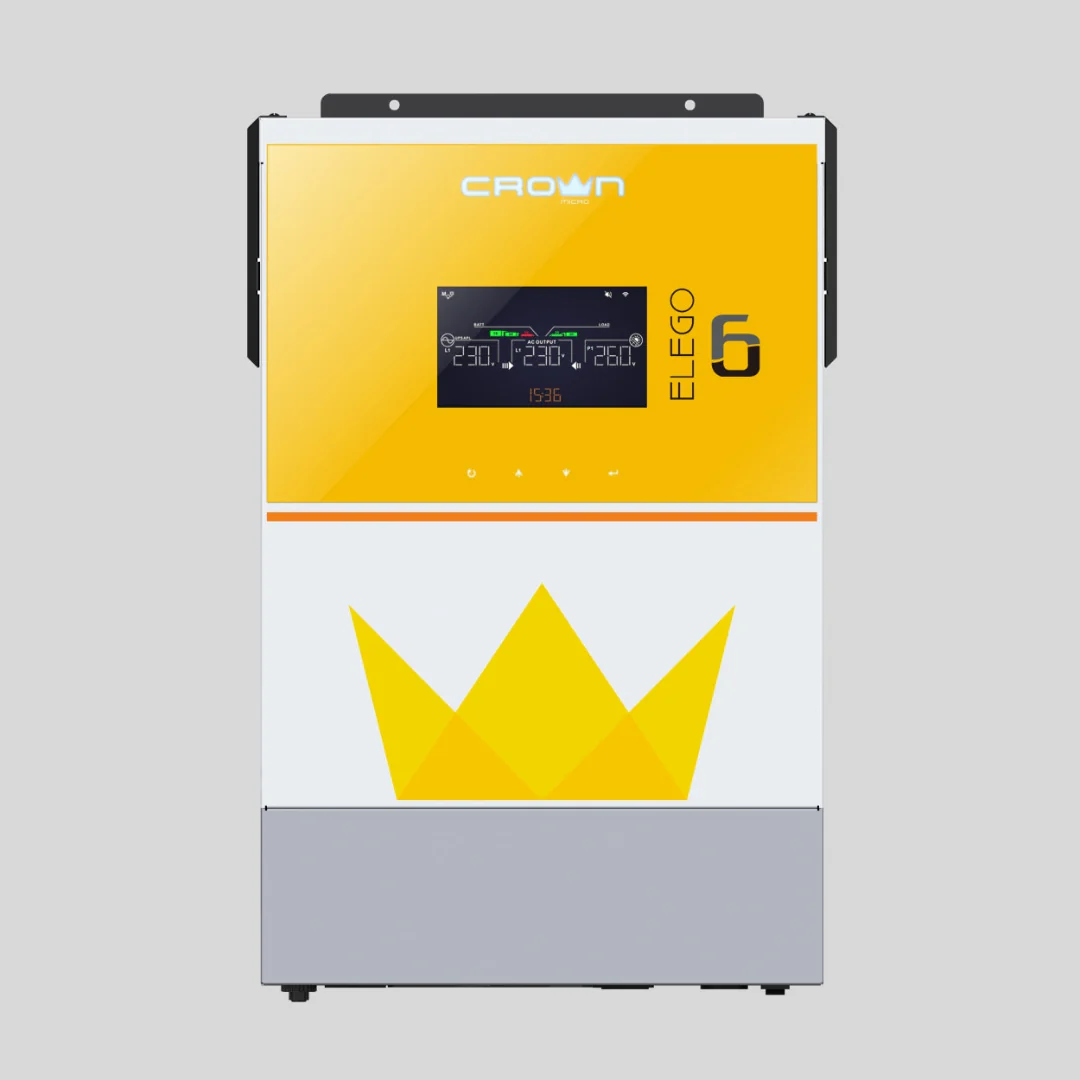

Crown Elego 6KW IP21 Hybrid Solar Inverter with 7000W PV
The Crown Elego 6KW Hybrid Solar Inverter is a versatile solution designed to provide high-efficiency solar power generation and management. Ideal for residential and small commercial applications, this inverter offers a pure sine wave output, ensuring reliable energy for all types of electrical appliances, while also providing seamless integration with grid and battery systems.
Key Features
- Pure Sine Wave Output: Ensures stable and clean electricity, making it suitable for sensitive appliances and electronic devices.
- Self-consumption & Feed-in to the Grid: Allows for optimal utilization of solar energy, either for personal use or feeding excess power back to the grid.
- Programmable Supply Priority: Customize the power supply sequence between PV, battery, or grid based on your energy needs.
- User-Adjustable Charging Current & Voltage: Provides flexibility to adjust charging settings to match specific battery requirements, enhancing battery life and system performance.
- Multiple Operation Modes: Supports various operation modes such as Grid-tie with backup, allowing for flexible integration with different energy sources.
- Real-Time Monitoring & Control: Includes monitoring software for status display and control, allowing users to track system performance and make adjustments as needed.
- Parallel Operation: Supports parallel operation of up to 9 units, making it scalable for larger installations or future system expansion.
- Battery Independent System: Operates efficiently with or without battery storage, providing flexibility in system setup.
- Max. PV Input Power of 7000W: Offers substantial PV input capacity for high-efficiency solar energy harvesting.
- Dual Output: Provides two separate outputs to handle different load requirements, ensuring consistent and reliable power distribution.
- LCD & Touchpad Interface: The easy-to-use LCD screen and touchpad allow for intuitive system monitoring and control.
- Inbuilt BMS & Wi-Fi: Includes a Battery Management System (BMS) for optimized battery performance and Wi-Fi for remote monitoring and control.
Specifications
- Rated Output Power: 6KW
- Maximum PV Input Power: 7000W
- Output Type: Pure sine wave
- Operation Modes: Grid-tie, with backup
- Battery Type: Compatible with a wide range of battery types
- Communication: Built-in Wi-Fi and monitoring software
- Parallel Operation: Up to 9 units
- LCD Display: Intuitive touchscreen interface for easy operation
- IP Rating: IP21 (for indoor use)
- Inbuilt BMS: Ensures optimal battery management and protection
The Crown Elego 6KW Hybrid Solar Inverter is designed for those seeking an efficient and scalable solar power solution. With flexible configurations, advanced monitoring, and strong grid integration features, this inverter is the perfect choice for modern energy systems.
DOWNLOAD PDF
| MODEL NAME | Elego-VI-6KW |
| MODEL NUMBER | EOI-VI-6KW |
| PHASE | 1Phase In/ 1Phase Out |
| Maximum PV Input Power | 7000W |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 130VDC / 150 VDC |
| MPPT Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPPT Trackers / Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | >0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| HYBRID OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 130VDC / 150 VDC |
| MPPT Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPPT Trackers / Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 – 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Maximum AC Input Current | 40 A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120 A |
| Maximum AC Charging Current | 120 A |
| Maximum Charging Current | 120 A |
| GENERAL | |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 120 x 295 x 468 |
| Net Weight (kgs) | 12 |
| INTERFACE | |
| Parallel Function | Yes, 9 units |
| Communication Port | USB or RS-232/Dry Contact |
| ENVIRONMENT | |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
