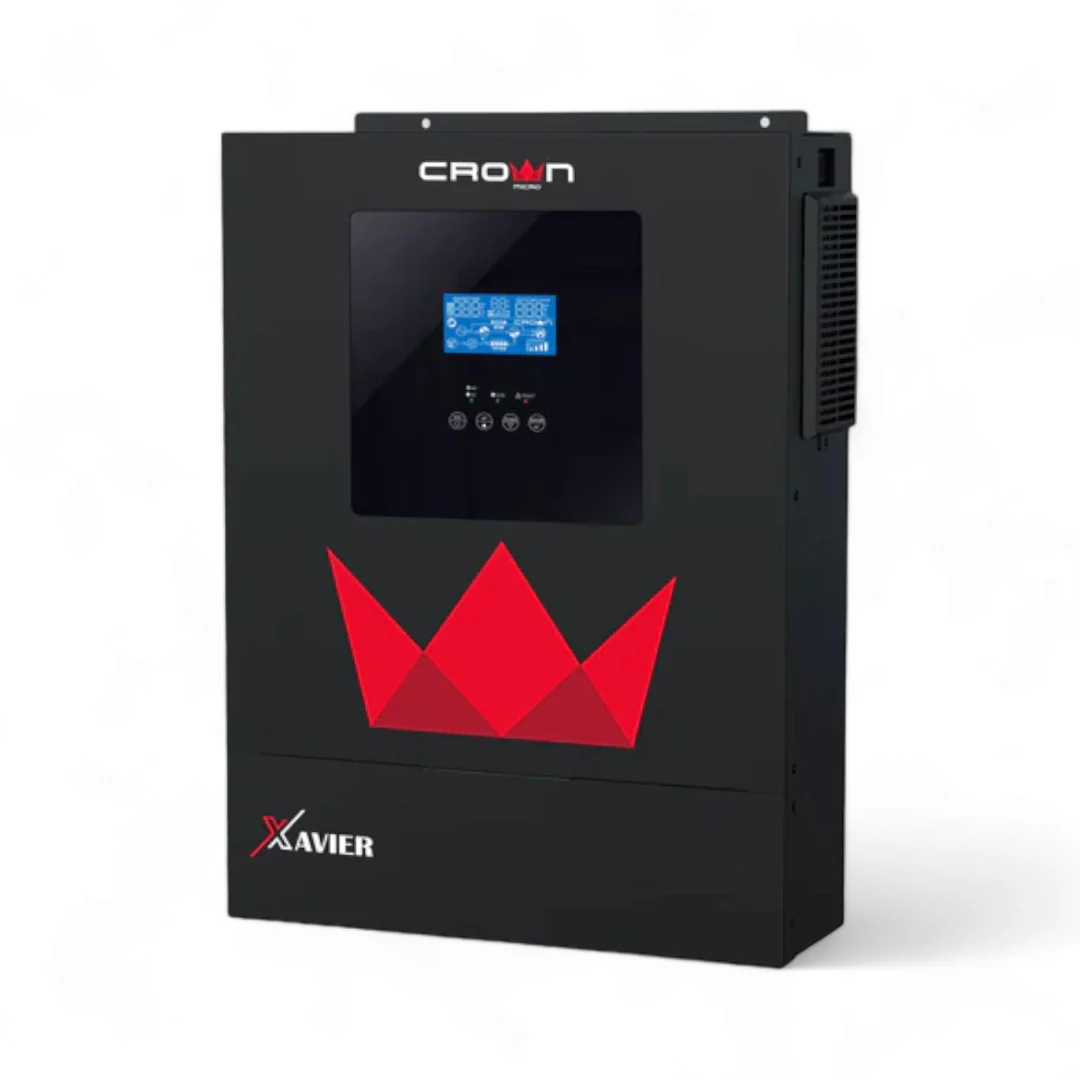

Crown Xavier 3KW Pure Sine Wave Solar Inverter With 3000W PV

Crown Xavier 3KW Pure Sine Wave Solar Inverter with 3000W PV

The Crown Xavier 3KW is a high-performance pure sine wave inverter with MPPT solar charging technology, designed to efficiently convert solar energy into electricity. Ideal for both residential and commercial applications, it ensures maximum efficiency and performance, with advanced features such as battery equalization and a built-in anti-dust kit for reliability in challenging environments.

Key Features

• Pure Sine Wave Output: Provides stable and clean power for sensitive devices and electronics, ensuring smooth operation.
• MPPT Solar Charging: Built-in 50A MPPT solar charger optimizes solar energy capture for faster and more efficient battery charging.
• Wide DC Input Range (60-400 VDC): Allows compatibility with a broad range of solar panel configurations, providing flexibility for various installations.
• Battery Independent Design: Operates without the need for batteries, making it suitable for grid-tied systems or areas with reliable grid access.
• Battery Equalization: Extends battery life and performance by optimizing charge cycles with the battery equalization function.
• Built-in Anti-Dust Kit: Protects internal components from dust, ensuring the inverter remains efficient and durable in harsh environments.
• Surge Power: Provides 6000VA surge power to handle high start-up loads, such as motors and other high-demand equipment.
• LCD with Touch Pad: 2.5” LCD display with touchpad for easy system monitoring and control.
• Wi-Fi (Optional): Enables remote monitoring and management of the inverter system via mobile or desktop applications.
• Thermal Protection Sensor: Ensures the inverter operates safely by monitoring temperature and preventing overheating.

Specifications

• Model Name: Xavier 3KW-PF 1.0
• Model Number: X-3KW-PF1
• Rated Power: 3000VA/3000W
• Input Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers) / 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)
• Surge Power: 6000VA
• Efficiency (Peak): 93%
• Transfer Time: 10 ms (For Personal Computers) / 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• Battery Voltage: 24 VDC
• Floating Charge Voltage: 27 VDC
• Overcharge Protection: 32 VDC

Solar Charger & AC Charger

• Solar Charger Type: MPPT
• Maximum PV Array Open Circuit Voltage: 450 VDC
• Maximum PV Array Power: 3000W
• MPPT Range @ Operating Voltage: 60-400 VDC
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 80A
• Communication Interface: RS232

Operating Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C

Summary

The Crown Xavier 3KW Pure Sine Wave Solar Inverter is an ideal choice for residential or commercial solar applications, offering exceptional efficiency, robust features, and flexibility in both grid-tied and off-grid systems. The advanced MPPT solar charger and battery equalization function ensure long-term performance and reliability.
