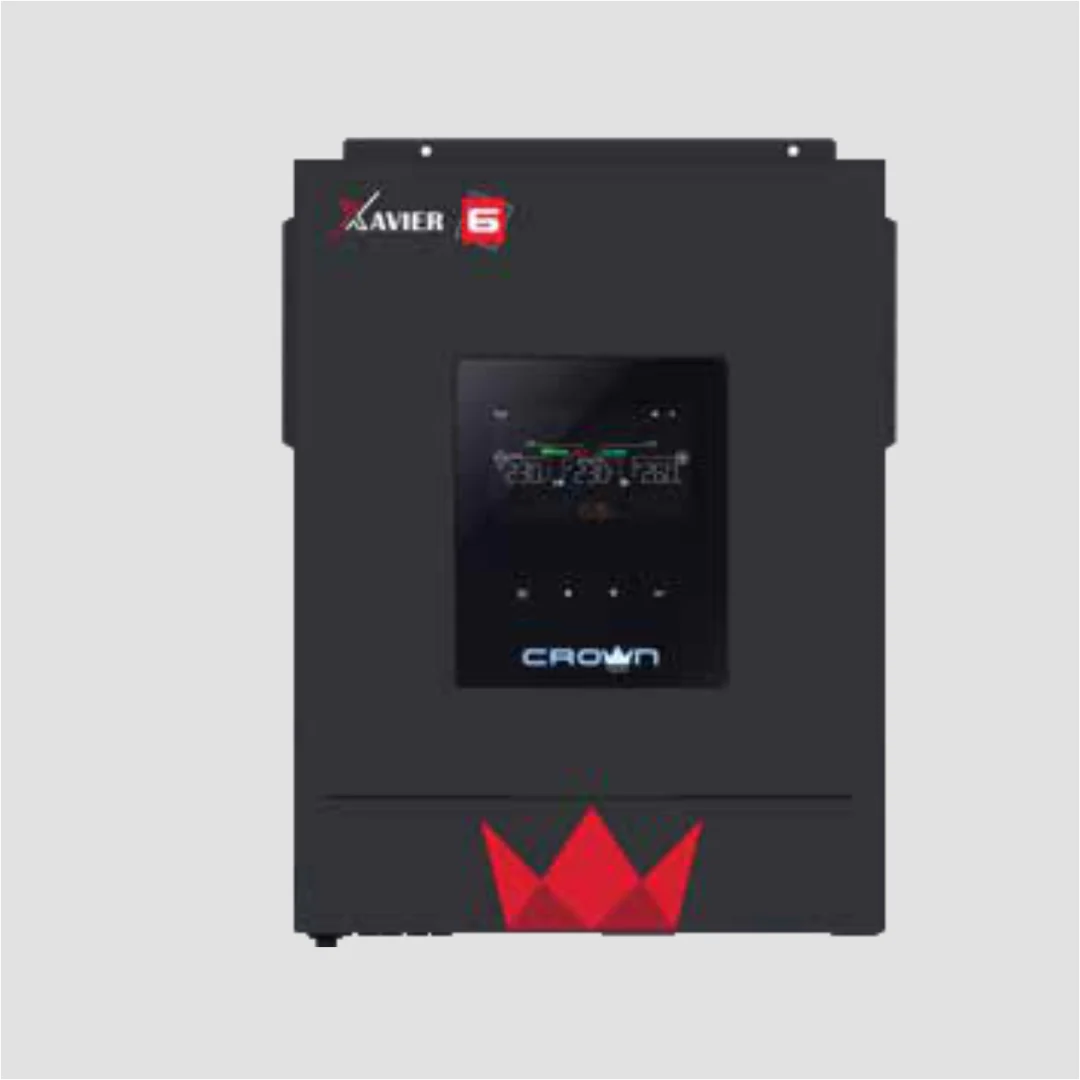

Crown Xavier II 6KW Hybrid Solar Inverter with 6500W PV
The Crown Xavier II 6KW Hybrid Solar Inverter is a high-performance, MPPT-based inverter designed to optimize solar energy conversion and storage. With its pure sine wave output and efficient energy management system, this inverter ensures stable power supply for both grid-tied and off-grid applications. The built-in WiFi and battery management system (BMS) provide easy monitoring and enhanced control, making it suitable for residential and commercial solar setups.
Key Features
- Pure Sine Wave Output: Provides clean, stable electricity suitable for sensitive electronics and appliances.
- High Efficiency (Peak 93%): Ensures optimal energy conversion and minimal losses during operation.
- Dual Outputs for Smart Load Management: Manages power distribution across multiple devices efficiently.
- Wide PV Input Voltage Range (60VDC-450VDC): Supports flexible solar panel configurations and optimizes energy harvesting.
- Feed-in to Grid Function: Allows for seamless integration with the grid, providing excess energy back to the utility.
- Built-in WiFi & Battery Management System (BMS): Enables remote monitoring and control via mobile apps for easy access to system performance.
- Battery Independent Design: Primarily operates off solar energy, reducing reliance on battery storage.
- MPPT Solar Charger: Maximizes solar energy conversion and improves charging efficiency.
- Battery Equalization Function: Enhances battery health and extends the lifespan by optimizing charging cycles.
- Surge Power 12000VA: Handles high power demands during startup or surge events without compromising performance.
- Overcharge Protection: Safeguards batteries with overcharge protection at 63 VDC.
- Maximum Solar Charge Current 120A: Ensures rapid and efficient charging of connected batteries.
The Crown Xavier II 6KW Hybrid Solar Inverter is perfect for users looking for a reliable, efficient, and easy-to-manage solar inverter that delivers optimal performance and seamless integration with both solar panels and the grid.
| MODEL | Xavier 6KW |
| Rated Power | 6000VA/6000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable | 170-280 VAC (For Personal Computers) |
| Selectable Voltage Range | 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| Dual Outputs | Yes |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 6500W |
| Maximum PV Input Current | 27A |
| MPPT Range @ Operating Voltage | 60-450 VDC |
| Maxmum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 107 x 322.6 x 420.3 |
| Net Weight (kgs) | 10.5 |
| Communication Interface | Wi-fi/RS-485/CAN |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
