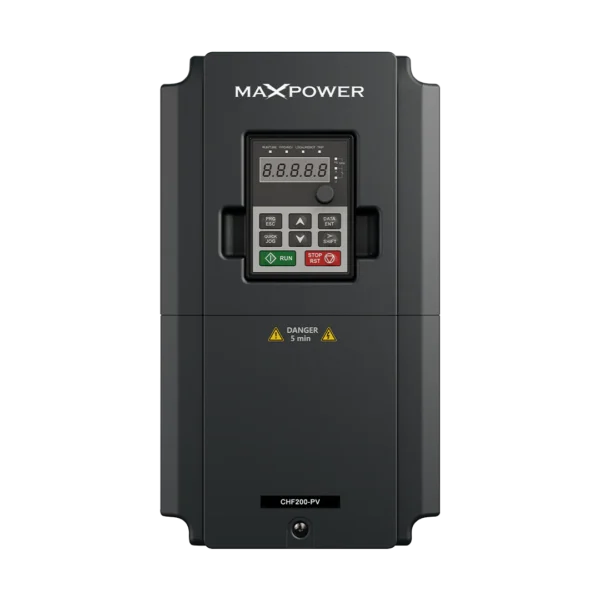

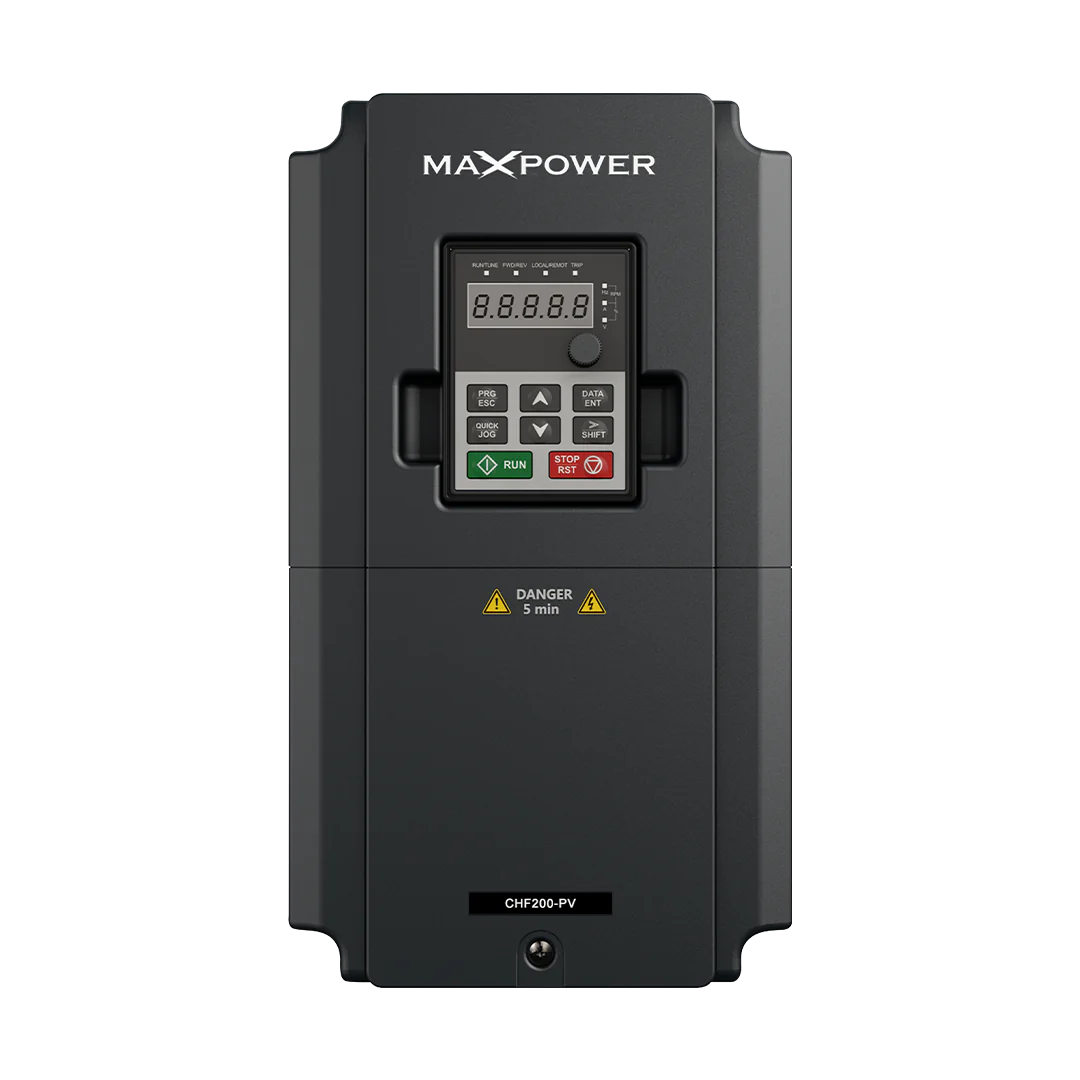

MaxPower CHF200-011-4-PV 11 KW – Hybrid VFD Solar Pump Inverter
CHF200-011-4-PV Hybrid VFD with Advanced MPPT and IoT Integration The CHF200-011-4-PV is a hybrid variable frequency drive (VFD) designed to operate efficiently using both AC and photovoltaic (PV) energy sources. Featuring advanced MPPT technology and intelligent IoT capabilities, this VFD ensures optimal performance and adaptability across various motor-driven pump applications. Key Features Hybrid Operation (AC & PV…
Description
CHF200-011-4-PV Hybrid VFD with Advanced MPPT and IoT Integration
The CHF200-011-4-PV is a hybrid variable frequency drive (VFD) designed to operate efficiently using both AC and photovoltaic (PV) energy sources. Featuring advanced MPPT technology and intelligent IoT capabilities, this VFD ensures optimal performance and adaptability across various motor-driven pump applications.
Key Features
- Hybrid Operation (AC & PV Supply): Seamlessly integrates AC and solar PV power sources, enabling continuous and energy-efficient operation.
- Advanced MPPT Algorithms: Maximizes solar energy utilization by dynamically tracking the maximum power point, ensuring improved efficiency and cost savings.
- High Efficiency and Stability: Provides consistent performance even in challenging operational environments, ensuring reliability over time.
- Effective Protection Function: Incorporates comprehensive protection features to safeguard the system and enhance its longevity.
- Intelligent IoT Integration: Allows for remote monitoring and control, facilitating smarter management and predictive maintenance through IoT connectivity.
- Multi-Type Pump Compatibility: Capable of driving various motor types, including permanent magnet synchronous motors (PMSM), asynchronous motors (AM), and single-phase motors, offering flexibility for diverse applications.
Specification
| DC input | Technical Data |
| Max DC voltage (V) | 800 |
| Start voltage(V) | 300 |
| Min. work voltage(V) | 250 |
| Recommended MPPT voltage (V) | 300-750 |
| Recommended input work voltage (V) | 550 |
| AC input | |
| 3PH 380 (-15% ) ~440 (+10% ) -4 | |
| Input voltage (Vac) | 3PH 220 (-15% ) ~240 (+10% ) -2 |
| 1PH 220 (-15%) 240 (+10%) -S2 & -SS2 | |
| Input frequency(Hz) | 47-63 |
| AC output | |
| Output voltage (Vac) | 0-input voltage |
| Output frequency(Hz) | 0-400 |
| Control performance | |
| Control method | V/F (SVPWM) |
| Pump type | Asynchronous, synchronous and single phase motor. |
| Overload | 120% of rated current : 1 minute |
| Overload capability | 150% of rated current : 10 seconds |
| Others | |
| Protective degree | IP20 |
| Cooling method | Forced air cooling |
| Interface | LED keypad |
| Professional function | |
| Protection function | Low water level, overload, overcurrent, overvoltage, weak sunlight alarm, overheating, etc. |
| MPPT function | Automatic factory setting |
| Auto run/stop | Sleep when the light is weak and wake up when the light is strong |
| Water level monitor | Sleep when the water is full and wake up when the water level is low |
| Certification | |
| Certification standard | CE |
The CHF200-011-4-PV is an efficient and versatile solution for hybrid energy systems, delivering advanced functionality, robust protection, and compatibility with a wide range of motor-driven pump systems.
