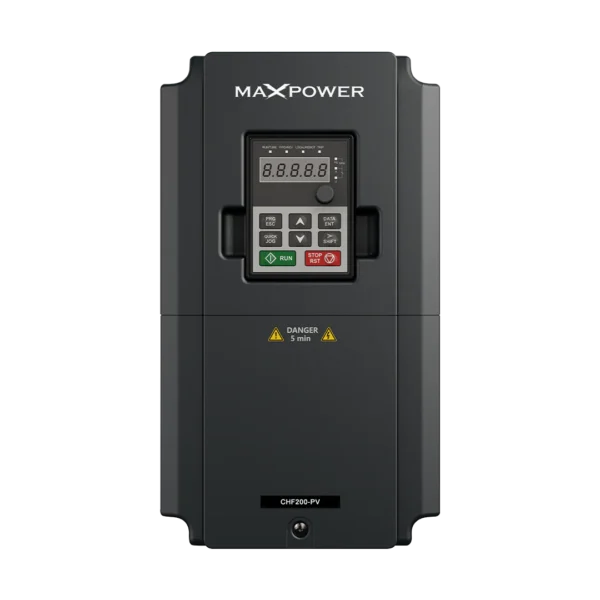

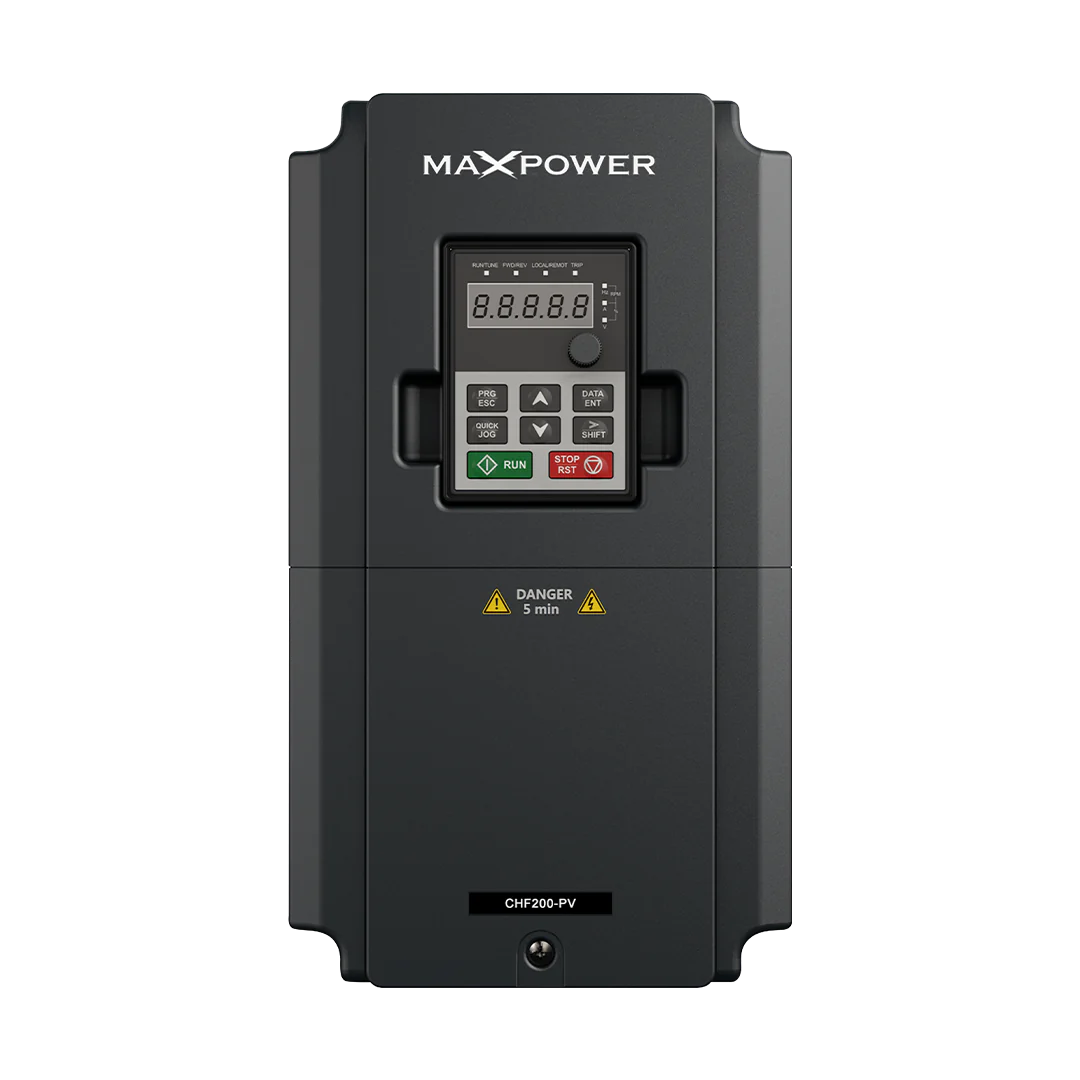

MaxPower CHF200-018-4-PV 18.5KW – Hybrid VFD Solar Pump Inverter
CHF200-018-4-PV Hybrid VFD with Advanced MPPT and IoT Integration The CHF200-018-4-PV is a versatile hybrid variable frequency drive (VFD) designed to seamlessly operate using both AC supply and photovoltaic (PV) energy. Engineered for high efficiency and reliability, it incorporates advanced MPPT algorithms and intelligent IoT capabilities, ensuring optimal performance for various applications, including driving multiple types of…
Description
CHF200-018-4-PV Hybrid VFD with Advanced MPPT and IoT Integration
The CHF200-018-4-PV is a versatile hybrid variable frequency drive (VFD) designed to seamlessly operate using both AC supply and photovoltaic (PV) energy. Engineered for high efficiency and reliability, it incorporates advanced MPPT algorithms and intelligent IoT capabilities, ensuring optimal performance for various applications, including driving multiple types of pumps.
Key Features
- Hybrid Operation (AC & PV Supply): Offers seamless integration of both AC and solar PV energy sources, ensuring consistent performance and energy efficiency.
- Advanced MPPT Algorithms: Maximizes solar energy utilization by tracking the maximum power point, enhancing energy harvest and operational efficiency.
- High Efficiency and Stability: Ensures smooth and reliable operation, even under varying environmental conditions.
- Effective Protection Function: Safeguards the system with built-in protection features, ensuring durability and safe operation.
- Intelligent IoT Integration: Allows real-time monitoring and control, enabling smarter system management and diagnostics.
- Support for Multiple Pump Types: Capable of driving permanent magnet synchronous motors (PMSM), asynchronous motors (AM), single-phase motors, and more, making it highly adaptable.
Specification
| DC input | |
| Max DC voltage (V) | 800 |
| Start voltage(V) | 300 |
| Min. work voltage(V) | 250 |
| Recommended MPPT voltage (V) | 300-750 |
| Recommended input work voltage (V) | 550 |
| AC input | |
| 3PH 380 (-15% ) ~440 (+10% ) -4 | |
| Input voltage (Vac) | 3PH 220 (-15% ) ~240 (+10% ) -2 |
| 1PH 220 (-15%) 240 (+10%) -S2 & -SS2 | |
| Input frequency(Hz) | 47-63 |
| AC output | |
| Output voltage (Vac) | 0-input voltage |
| Output frequency(Hz) | 0-400 |
| Control performance | |
| Control method | V/F (SVPWM) |
| Pump type | Asynchronous, synchronous and single phase motor. |
| Overload | 120% of rated current : 1 minute |
| Overload capability | 150% of rated current : 10 seconds |
| Others | |
| Protective degree | IP20 |
| Cooling method | Forced air cooling |
| Interface | LED keypad |
| Professional function | |
| Protection function | Low water level, overload, overcurrent, overvoltage, weak sunlight alarm, overheating, etc. |
| MPPT function | Automatic factory setting |
| Auto run/stop | Sleep when the light is weak and wake up when the light is strong |
| Water level monitor | Sleep when the water is full and wake up when the water level is low |
| Certification | |
| Certification standard | CE |
The CHF200-018-4-PV is a reliable and intelligent solution for applications requiring efficient energy management, flexibility in motor types, and seamless hybrid operation.
