Mora AES-63A II 3 Phase 63A Dual Power Automatic Transfer Switch ATS

Description

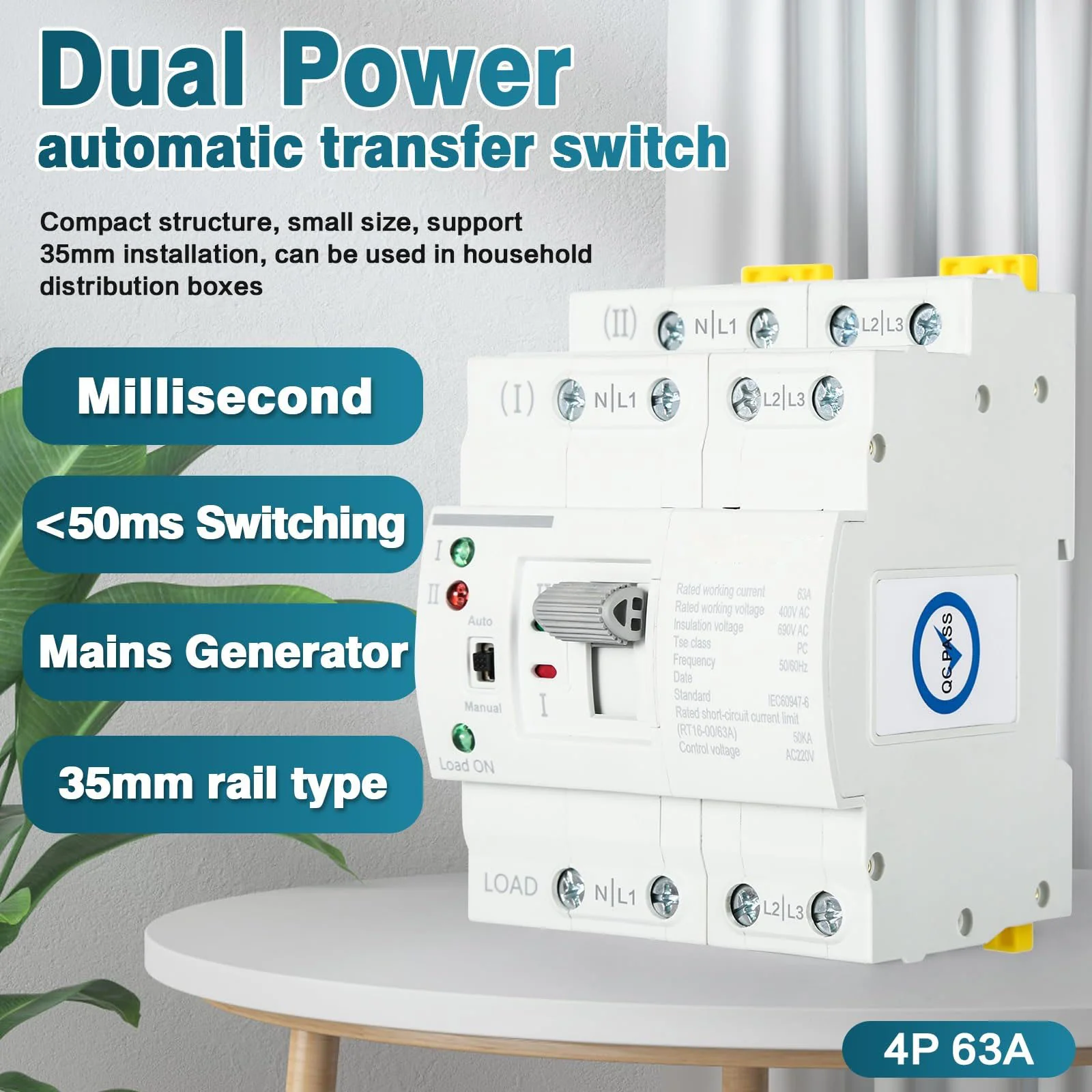

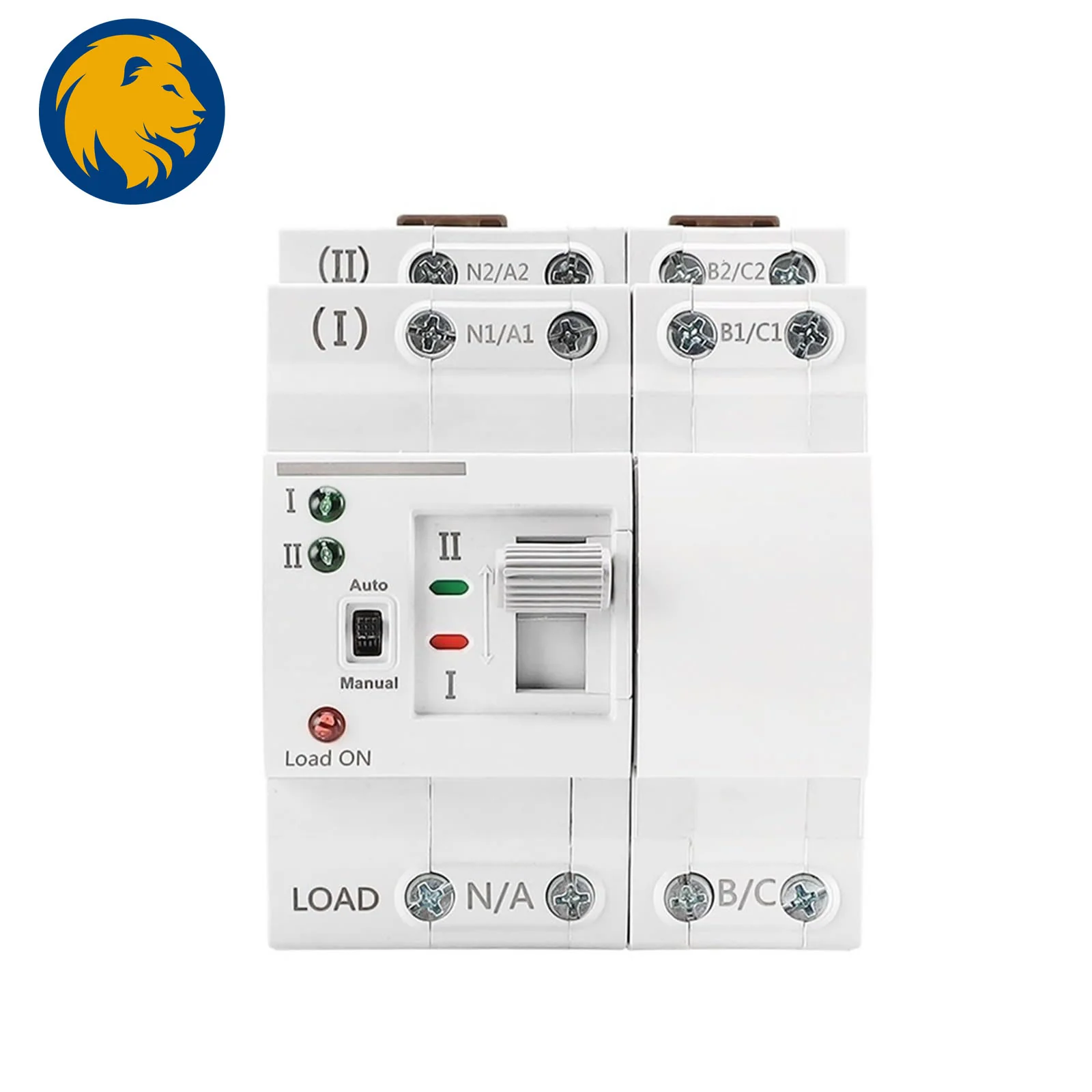

Mora AES-63A II 3-Phase 63A Dual Power Automatic Transfer Switch (ATS)

The Mora AES-63A II is a high-quality 3-phase dual power automatic transfer switch (ATS) designed to provide reliable and seamless switching between power sources. With its advanced features, it ensures continuous power supply to critical electrical systems, while offering protection and convenience for both residential and commercial applications.

Key Features

• Rated Operating Current: 63A, designed for high-power applications.
• Rated Insulation Voltage: 690V, ensuring safe and efficient operation in a variety of settings.
• Rated Working Voltage: AC440V, compatible with most industrial electrical systems.
• Short Circuit Protection: 50kA short-circuit current rating for enhanced safety.
• Poles: 4P, suitable for 3-phase systems with neutral.
• Control Circuit Voltage: AC220V, 50Hz, for stable and reliable control.
• Fast Switching Time: Contactor changeover time of less than 50ms, ensuring minimal downtime during transfer.
• Auxiliary Circuit: AC220V, 50Hz, with 5A capacity for additional load connections.
• Durability: Built to withstand tough working conditions with high impulse withstand voltage of 8kV.

Specifications

• Rated Operating Current (Ie): 63A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 8kV
• Rated Working Voltage (Ue): AC440V
• Rated Frequency: 50/60Hz
• Pole Number: 4P (for 3-phase systems with neutral)
• Rated Short-Circuit Current (Iq): 50kA
• Short Circuit Protection Device (Fuse): RT16-00-63A
• Control Circuit: AC220V, 50Hz
• Normal Working Conditions: 85%Us to 110%Us
• Auxiliary Circuit: AC220V, 50Hz, with 5A capacity
• Contactor Changeover Time: <50ms

The Mora AES-63A II ATS ensures a fast, safe, and efficient power transfer for industrial and commercial systems, with robust short-circuit protection and a quick switching mechanism, making it ideal for applications requiring uninterrupted power.
