SolarMax ORION 4kw PV5000 IP21

Description

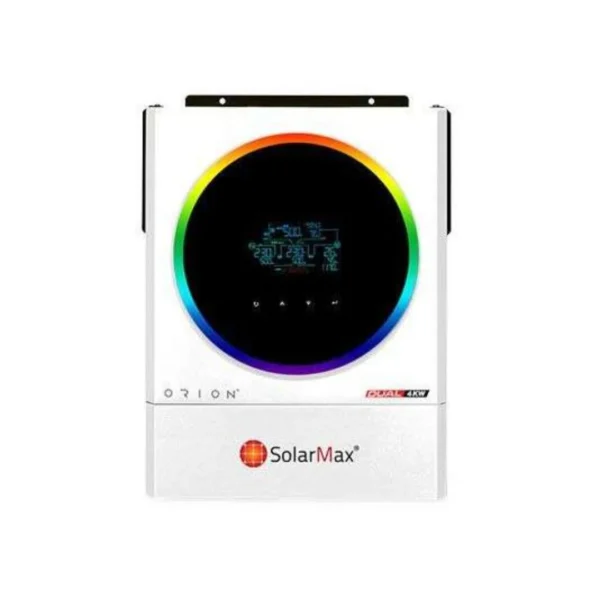

SolarMax Orion 4KW Off-Grid Inverter (PV5000 IP21)

The SolarMax Orion 4KW is an efficient off-grid inverter designed for residential and commercial solar systems. Featuring MPPT (Maximum Power Point Tracking) technology, it optimizes solar energy conversion for maximum performance. The inverter can handle both PV array inputs and batteries, ensuring efficient power management for various applications.

Key Features

• Rated Power: 4000VA / 4000W, suitable for moderate power needs.
• AC Input Voltage: 230V AC with selectable voltage ranges:
  • 170-280V (For Personal Computers)
  • 90-280V (For Home Appliances)
• Frequency Range: 50Hz/60Hz (Auto sensing).
• Surge Power: 8000VA, providing ample capacity to manage power surges during equipment startup.
• AC Voltage Regulation (Battery Mode): 230V AC ±10% for stable power delivery.
• Pure Sine Wave Output: Ensures clean, high-quality power for sensitive equipment.
• Transfer Time:
  • 10 ms for Personal Computers
  • 20 ms for Home Appliances.

Battery & Solar Charger

• Battery Voltage: 24V DC, commonly used for smaller off-grid systems.
• Floating Charge Voltage: 27V DC
• Overcharge Protection: 33V DC to prevent damage to the battery.
• Solar Charger Type: MPPT for efficient energy conversion and optimization of solar input.
• Maximum PV Array Power: 5000W to ensure high-efficiency power conversion.
• MPPT Range: 60V – 450V DC, suitable for a variety of solar panel configurations.
• Maximum PV Input Voltage: 500V DC, supporting large PV arrays.
• Maximum PV Input Current: 27A for better system compatibility.
• Maximum Solar Charge Current: 120A, ensuring fast battery charging.
• Maximum AC Charge Current: 100A, with a total charge current limit of 120A.

Physical & Communication

• Dimensions: 119mm (D) x 313.6mm (W) x 457.5mm (H)
• Net Weight: 10kg for easier handling and installation.
• Communication Interface:
  • USB, RS232, RS485, WiFi, and Dry-contact for versatile monitoring and control.

Operating Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing).
• Operating Temperature: -10°C to 50°C for use in a wide range of climates.
• Storage Temperature: -15°C to 60°C, providing flexibility for storage in various conditions.

Warranty

• Two-Year Parts Replacement Warranty, ensuring long-term reliability and customer satisfaction.

The SolarMax Orion 4KW inverter is an excellent choice for users who need a reliable and efficient solution for their off-grid solar systems. Its MPPT technology and wide range of features make it ideal for small to medium-sized solar installations, offering superior performance, flexibility, and ease of use. The inverter also includes advanced communication options like WiFi and USB for convenient monitoring and management.

Note : (Two Year parts replacement warranty)
